The C Bucket frame keeps growing

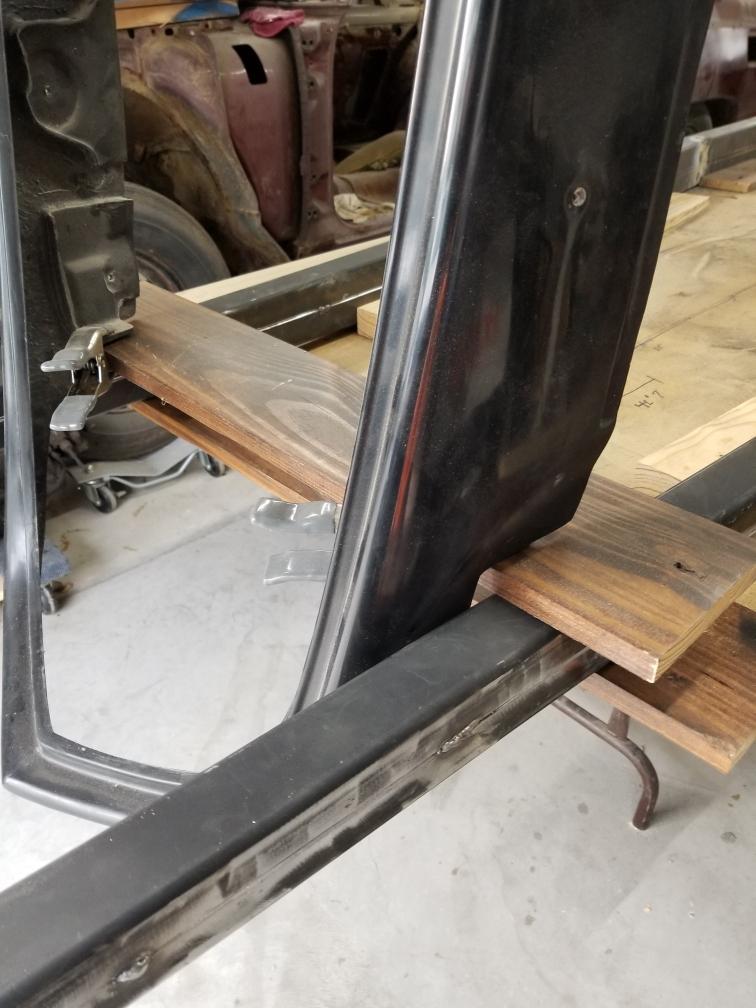

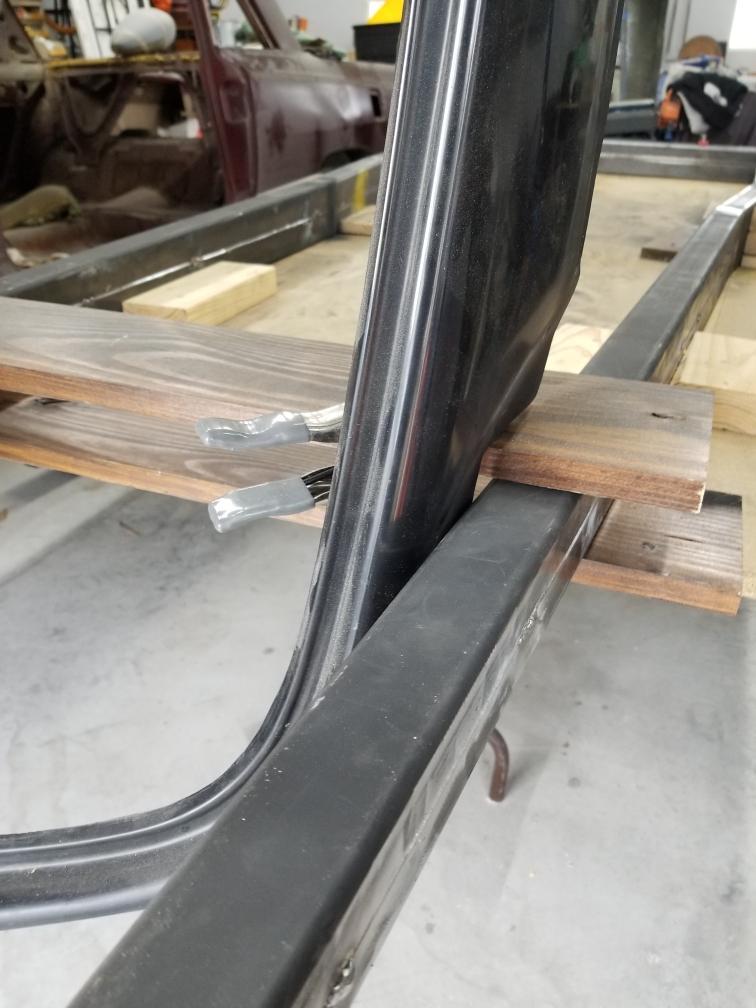

Well progress continues on the 27 C Bucket.  Today the second bend was made in the frame rails at the firewall changing the taper so that the rails are the appropriate distance apart to allow the grill shell to fit in its design location.  As soon as time allows the front frame member will be made and tacked in.  At that point I'll be waiting for some custom cut rear frame horns I made patterns for.  Until then here are some shots of the frame as of today
