Making an air cleaner to match the fuel tank




When I bought the ends I used to make the fuel tank I bought three with the intent of using one as an air cleaner cover.  I had no idea how HEAVY they would be!  I still wanted the shape but knew there was no way I wanted to put that much weight on top of the carb.  So improvise it is.  I used the remaining tank section to make a mold

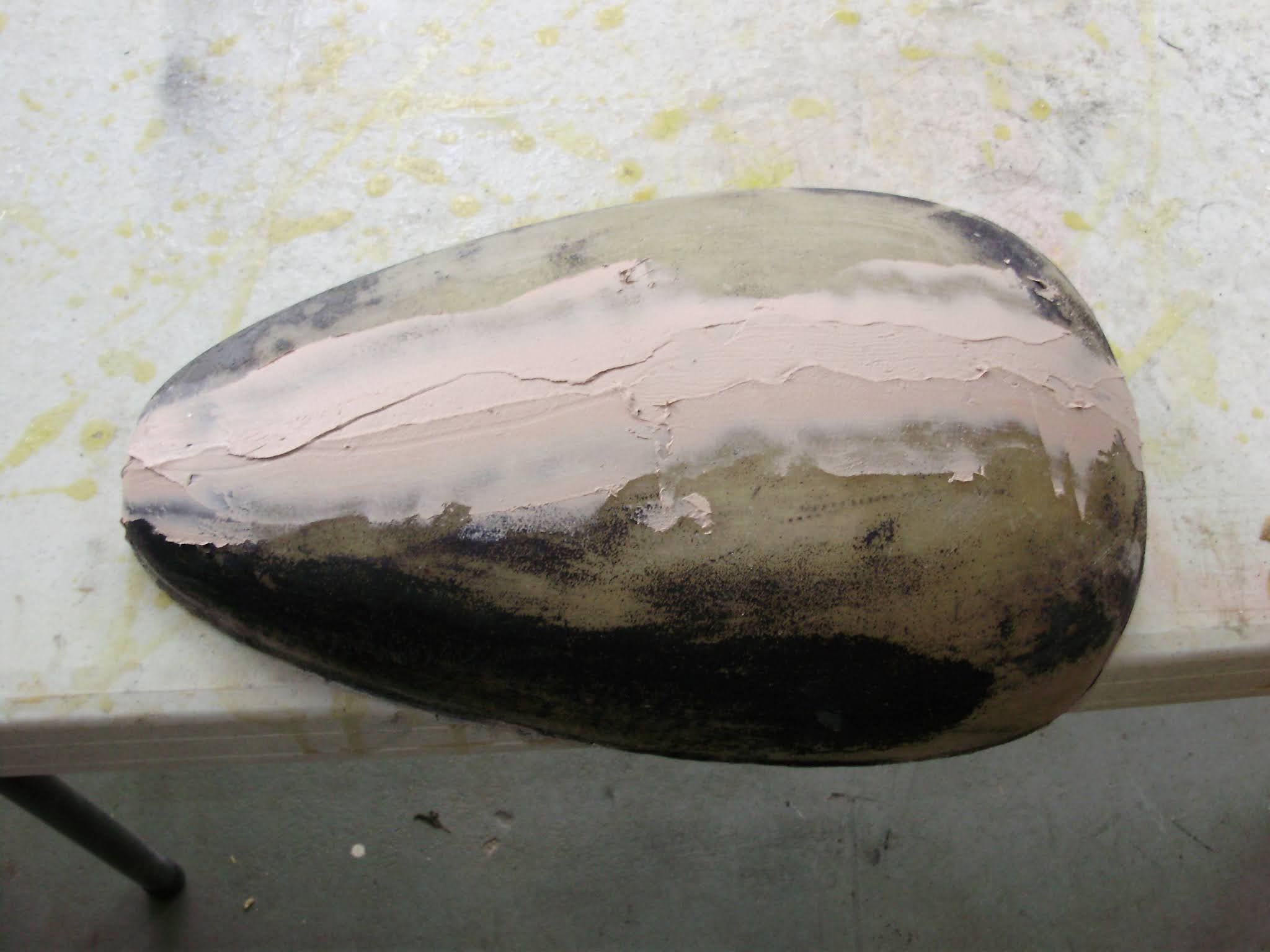

Following the wax and application of part-all I laid in two layers of 3/4 oz matt and ended up with an almost exact replica of the shape I wanted but in a part weighing only a tiny fraction of the original steel unit :).  It did require a small amount of filler and sanding


After a little primer was on it was ready to go on the shelf until the day I'm ready to put it to use
